Rib Vault GPR Survey from Above — Backfill Thickness and Structural Geometry

Rib Vault GPR Survey from Above — Backfill Thickness and Structural Geometry

Description

GPR profiles acquired from above a rib vault in a cathedral, with a GSSI UtilityScan DF dual-frequency antenna. Three profiles crossing the vault, recorded from the extrados side to measure the thickness of the backfill covering it. Raw unprocessed files.

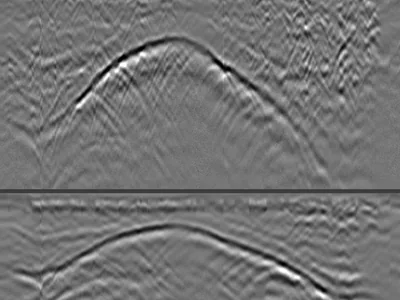

The vault reads as a curved reflection whose depth varies continuously along the profile: shallow at the crown, deeper towards the springing. The points where that curve begins and ends mark the extent of the vault — the information a structural survey needs before locating loads, planning an intervention or assessing the fill above.

Information

Application Archaeology
GSSI antennaUtilityScan DF
Frequency300/800 MHz
FormatDZT
Size6,5 MB
Files3
Channels2
GPS filesNot available
ContributorMDSLab
Added on2026-08-13
Ground truth Partial

Archive contents

  • 7 files
  • 6,3 Mo .zip archive
  • 11,0 Mo unpacked
  • DZT × 3 numbered 001 à 003
  • DZX × 3 numbered 001 à 003

Also included: GPRbase_LICENCE.txt

Show the full list (7)
  1. 001.DZT 5,8 Mo
  2. 001.DZX 3 Ko
  3. 002.DZT 2,5 Mo
  4. 002.DZX 3 Ko
  5. 003.DZT 2,6 Mo
  6. 003.DZX 3 Ko
  7. GPRbase_LICENCE.txt 6 Ko

Cite this dataset

APA

MDS - Le Matériel de Sondage - GPRbase (2026). Rib Vault GPR Survey from Above — Backfill Thickness and Structural Geometry [Data set]. GPRbase. GSSI, UtilityScan DF, 300/800 MHz. https://www.gprbase.com/en/dataset/ds027-rib-vault-gpr-survey-from-above-backfill-thickness-and/

BibTeX

@misc{gprbase_ds027,
  author       = {MDS - Le Matériel de Sondage - GPRbase},
  title        = {Rib Vault GPR Survey from Above — Backfill Thickness and Structural Geometry},
  year         = {2026},
  publisher    = {GPRbase},
  howpublished = {\url{https://www.gprbase.com/en/dataset/ds027-rib-vault-gpr-survey-from-above-backfill-thickness-and/}},
  note         = {GSSI, UtilityScan DF, 300/800 MHz. Licensed under CC BY-NC-SA 4.0},
}
